Description

ABOUT THIS ITEM

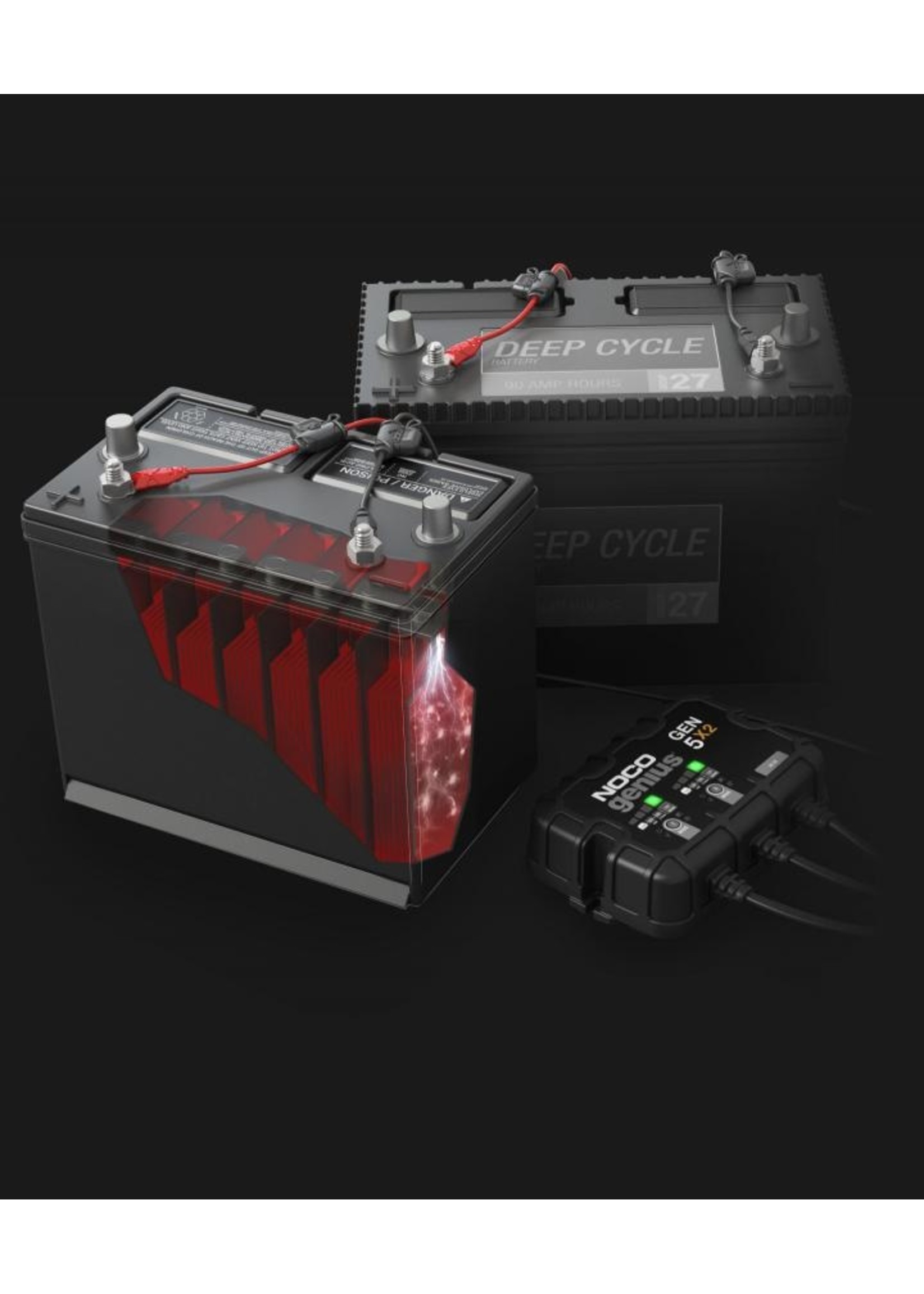

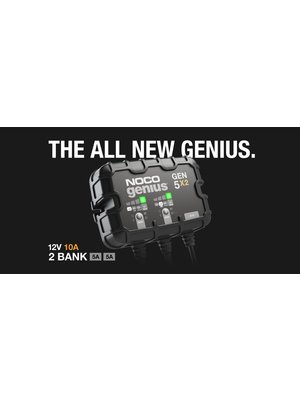

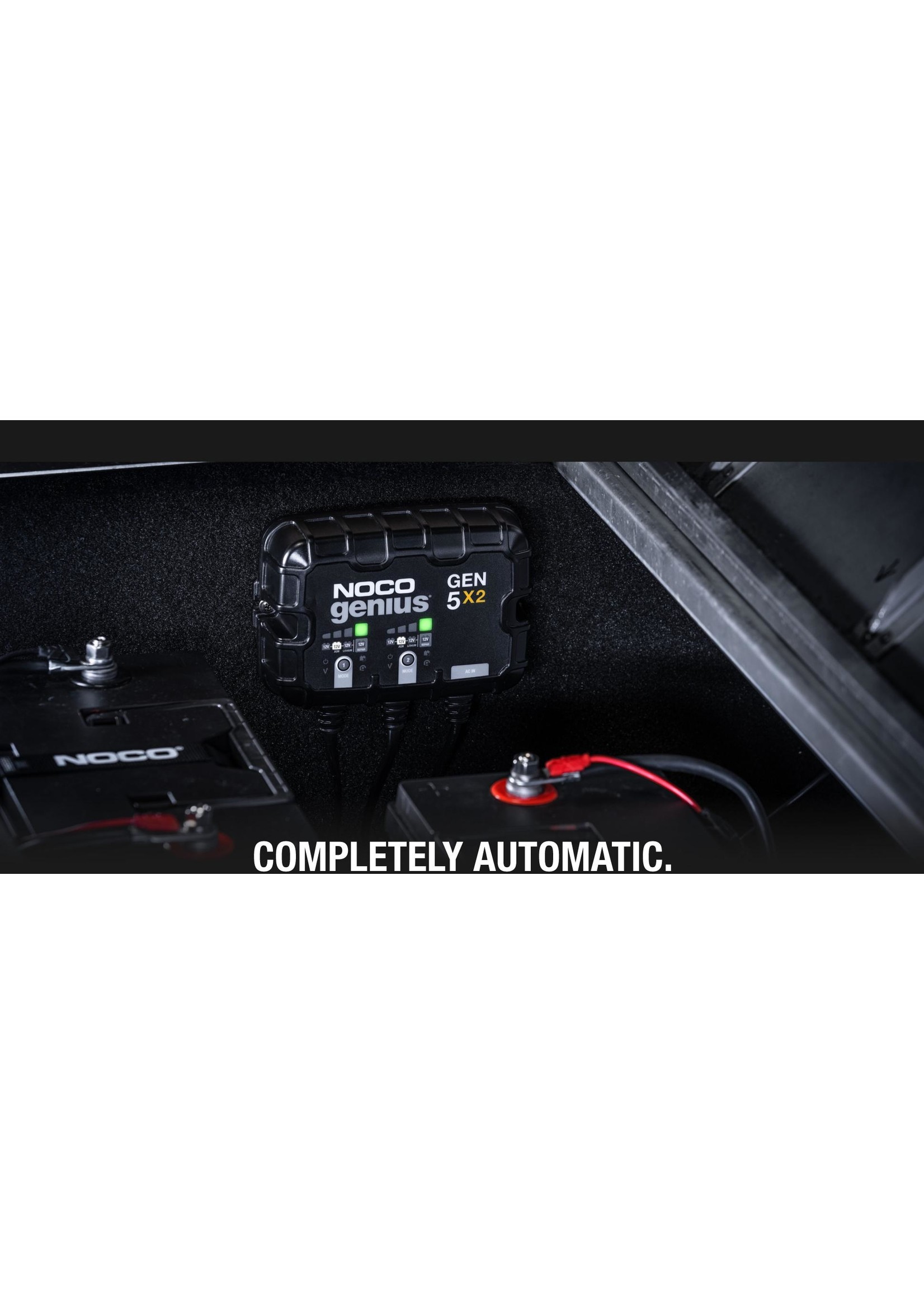

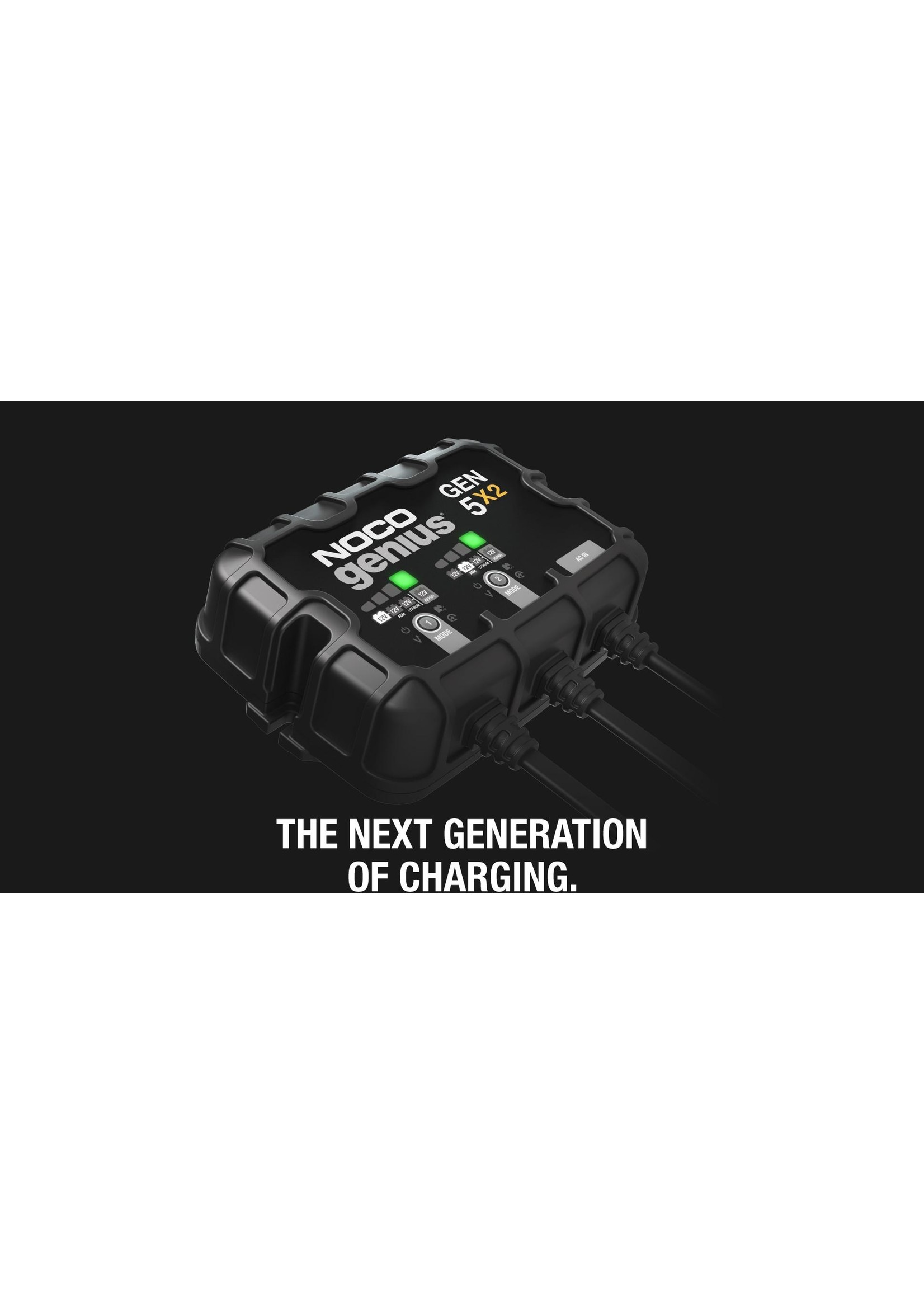

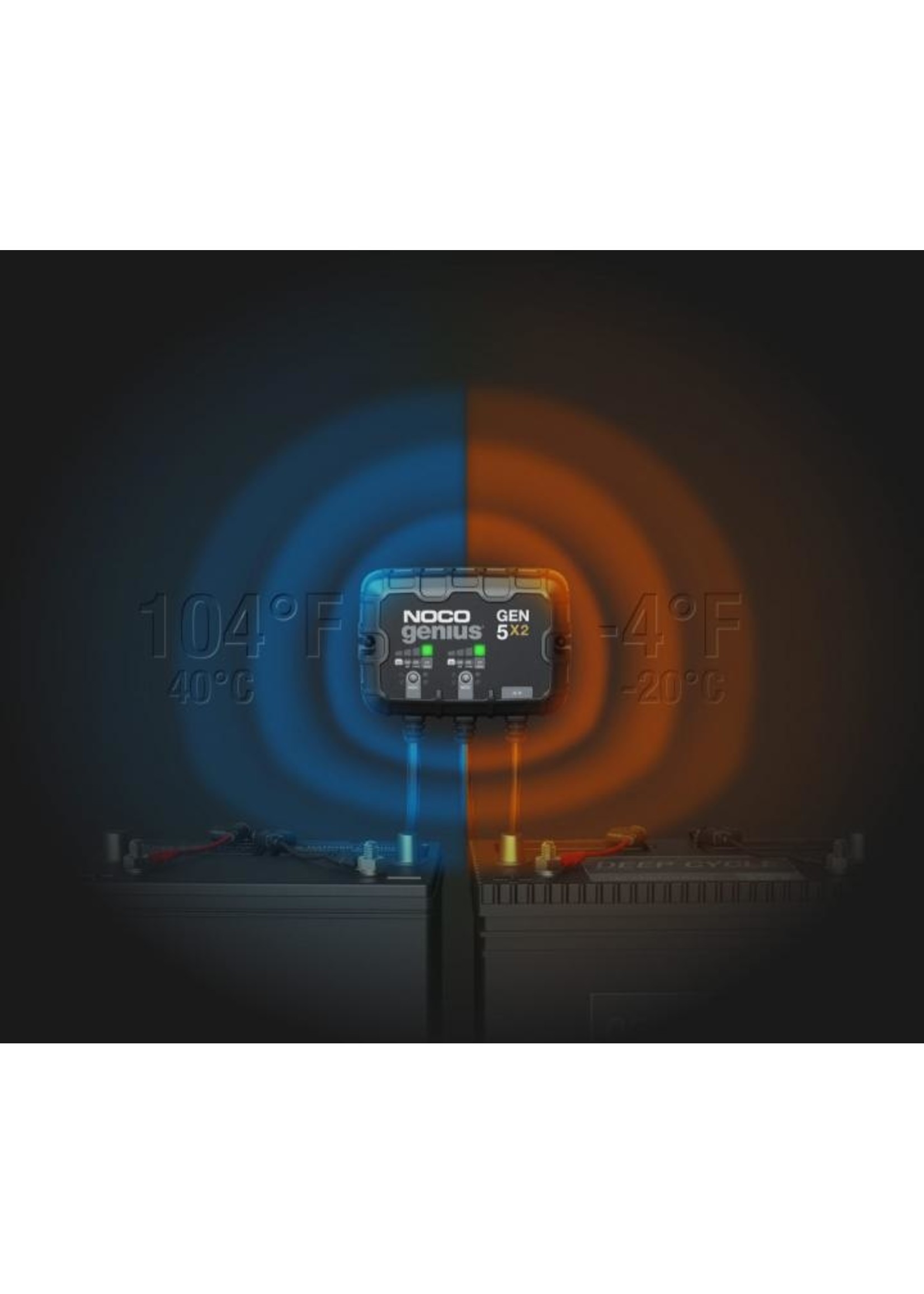

This GEN5X3 is a two-bank onboard battery charger rated at 10-amps (5-amps per bank) for 12-volt batteries. It independently charges and controls each battery bank with selectable charging modes. For example, 12V, 12V AGM, 12V Lithium. It also contains a thermal sensor detecting the ambient temperatures and alters the charge to eliminate over-charging in hot climates and under-charging in cold climates. Its fully-sealed and waterproof with an ingress protection rating of IP68. Not only is it a trickle charger but it is also an advanced battery maintainer. A fully automatic, worry-free battery charger for everyday use with no overcharge!

TECHNICAL SPECIFICATIONS
WHAT’S IN THE BOX
GEN5X2 On-Board Battery Charger
(2) Self-Tapping Screws
User Guide & Warranty Information

OPERATING REQUIREMENTS
Line Voltage: 120V to 240V AC
Frequency: 50Hz to 60Hz
Operating Temperature: -4° to 104° F (-20° to 50° C)
Storage Temperature: -22° to 140° F (-30° to 60° C)
Relative Humidity: 0 to 95% Non-Condensing

CHARGING
Current: 5 Amps DC x 2 Banks
Voltages: 12V
Chemistry: Lead-Acid and Lithium

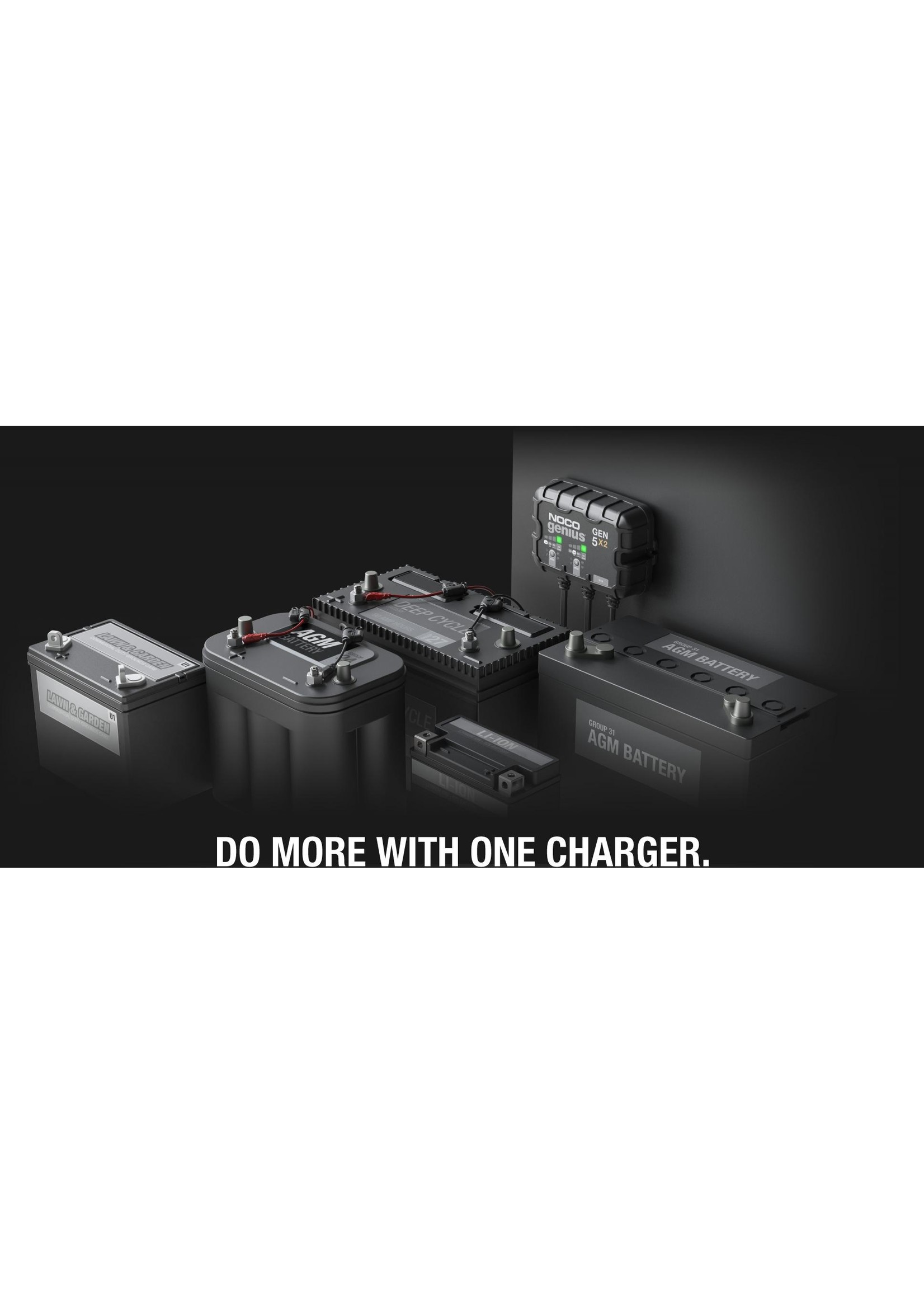

Types: Wet, Gel, MF, CA, EFB, AGM, Lithium
Battery Capacity Range: Up to 120 Amp-Hours
Maintenance: All Battery Sizes

POWER
Consumption: 145 Watts (Max), 2 Banks

PROTECTION
IP Rating: IP68

SAFETY
Short-Circuit: Yes
Open-Circuit: Yes
Overheating: Yes
Overcharge: Yes
Spark-Proof: Yes
Reverse Polarity: Yes

SIZE
Height: 5.6 Inches (142.4mm)
Width: 7.0 Inches (177mm)
Depth: 2.2 Inches (56.0mm)
Weight: 4.17 Pounds (1.9kg)

CORD MANAGEMENT
DC Cable + Eyelet Length: 72 Inches (182cm)
DC Cable Size: 16 AWG
DC Fuse Size: 7.5 AMP MINI ® Blade Fuse
AC Cable Length: 72 Inches (182cm)
AC Cable Size: 18 AWG
Oil, gas, grease, water, chemical, UV, abrasion resistant

LIMITED WARRANTY
3-Year Limited Warranty
